LIEX 710 Marine Fog Signals: 1/2 Mile and 2 Mile
Wet Tech Energy supplies two FM-approved electronic marine fog signals: the LIEX 710/051 1/2 mile fog signal and the LIEX 710/22 2 mile fog signal. Both are U.S. Coast Guard approved fog horns for offshore platforms, drilling rigs, offshore wind farms, CALM buoys and FPSOs.

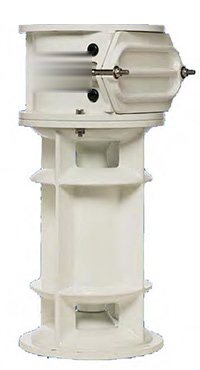

LIEX 710/051 1/2-Mile Fog Signal
A 1 LIEX 710 emitter system, U.S. Coast Guard approved for 1/2 mile range with 9.5 W input to the emitter. FM Approved.

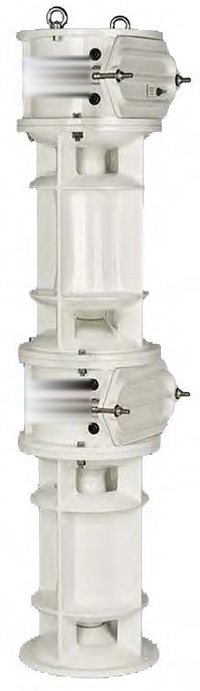

LIEX 710/22 2-Mile Fog Signal
A 2 LIEX 710 emitter system, U.S. Coast Guard approved for 2 mile range with 110.3 W input to the emitter. FM Approved.
Fog Signal Features
- Resonates at approximately 670 Hz, a frequency chosen for range rating under both U.S. Coast Guard and IALA criteria
- Omnidirectional audio output
- Microprocessor-based control electronics
- Remote control terminals for a fog detector, a remote coder or an “at will” switch. With a fog detector, the horn sounds automatically in low visibility and stays silent otherwise
- Remote code selector terminals for changing the sounding rhythm, and terminals for synchronizing with other horns or lights (or a centralized master coder)
- 2-hour temporary silence control for technicians; the horn returns to its designated code after the time-out
LIEX 710 Fog Signal Specifications
| Specification | LIEX 710/051 (1/2 mile) | LIEX 710/22 (2 mile) |
|---|---|---|
| Nominal range | 1/2 mile | 2 mile |
| Emitters | 1 x LIEX 710 | 2 x LIEX 710 |
| Frequency | 670 Hz / 660 Hz | 670 Hz / 660 Hz |
| Height | 667 mm (26-1/4 in) | 1333.5 mm (52.5 in) |
| Diameter | 302 mm (11-7/8 in) | 302 mm (11-7/8 in) |
| Weight | 32 kg (70 lb) | 63 kg (140 lb) |
| Shipping weight | 45 kg (100 lb) | 91 kg (200 lb) |
| Mounting | (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C. | (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C. |
| Housing | Marine grade cast aluminum | Marine grade cast aluminum |
| Input voltage | 10.5-30 VDC; 120 or 230 VAC (other voltages on request) | 10.5-30 VDC; 120 or 230 VAC (other voltages on request) |
| Input power to horn | 16 W | 140.0 W |
| Output power to drivers | 9.5 W | 110.3 W |
| Operating temperature | -25 °C to 55 °C | -25 °C to 55 °C |
| Corrosion protection | NEMA-4X | NEMA-4X |
| Ingress rating | IP-66 | IP-66 |
| Certificates | FM Approved: NI/I/2/BCD/T4; -25 °C ≤ Ta ≤ +55 °C NI/I/2/IIB+H2/T4; -25 °C ≤ Ta ≤ +55 °C ATEX or IECEx Zone 1 & 2 versions also available | FM Approved: NI/I/2/BCD/T4; -25 °C ≤ Ta ≤ +55 °C NI/I/2/IIB+H2/T4; -25 °C ≤ Ta ≤ +55 °C ATEX or IECEx Zone 1 & 2 versions also available |
LIEX 710/051 1/2-Mile
- Nominal range
- 1/2 mile
- Emitters
- 1 x LIEX 710
- Frequency
- 670 Hz / 660 Hz
- Height
- 667 mm (26-1/4 in)
- Diameter
- 302 mm (11-7/8 in)
- Weight
- 32 kg (70 lb)
- Shipping weight
- 45 kg (100 lb)
- Mounting
- (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C.
- Housing
- Marine grade cast aluminum
- Input voltage
- 10.5-30 VDC; 120 or 230 VAC (other voltages on request)
- Input power to horn
- 16 W
- Output power to drivers
- 9.5 W
- Operating temperature
- -25 °C to 55 °C
- Corrosion protection
- NEMA-4X
- Ingress rating
- IP-66
- Certificates
- FM Approved: NI/I/2/BCD/T4; −25 °C ≤ Ta ≤ +55 °C. NI/I/2/IIB+H2/T4; −25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 & 2 versions also available
LIEX 710/22 2-Mile
- Nominal range
- 2 mile
- Emitters
- 2 x LIEX 710
- Frequency
- 670 Hz / 660 Hz
- Height
- 1333.5 mm (52.5 in)
- Diameter
- 302 mm (11-7/8 in)
- Weight
- 63 kg (140 lb)
- Shipping weight
- 91 kg (200 lb)
- Mounting
- (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C.
- Housing
- Marine grade cast aluminum
- Input voltage
- 10.5-30 VDC; 120 or 230 VAC (other voltages on request)
- Input power to horn
- 140.0 W
- Output power to drivers
- 110.3 W
- Operating temperature
- -25 °C to 55 °C
- Corrosion protection
- NEMA-4X
- Ingress rating
- IP-66
- Certificates
- FM Approved: NI/I/2/BCD/T4; −25 °C ≤ Ta ≤ +55 °C. NI/I/2/IIB+H2/T4; −25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 & 2 versions also available
All values are subject to change without notice.

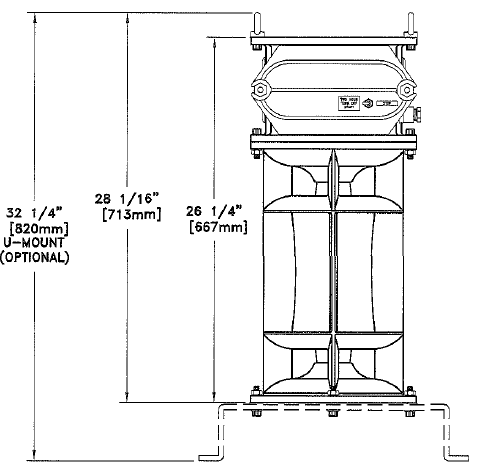

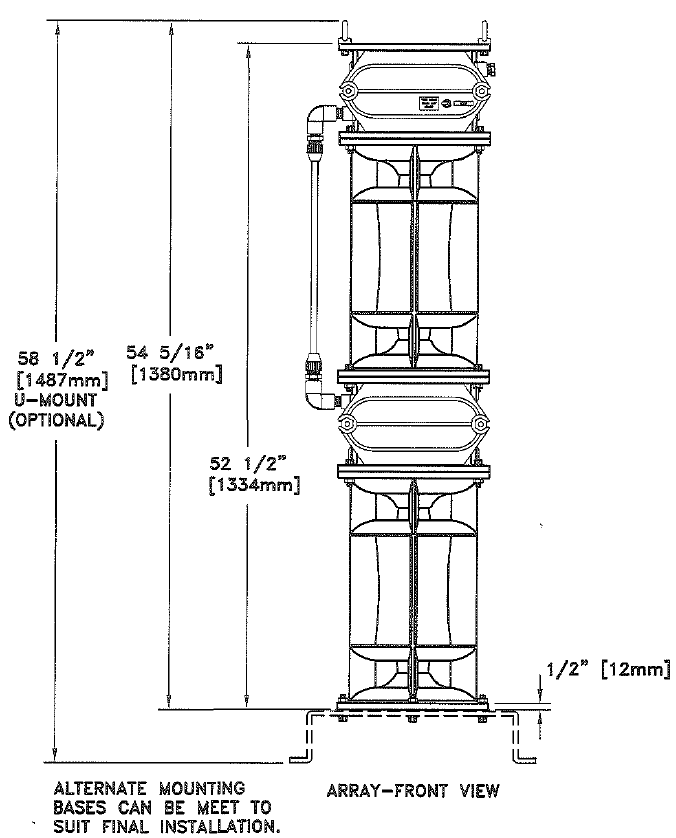

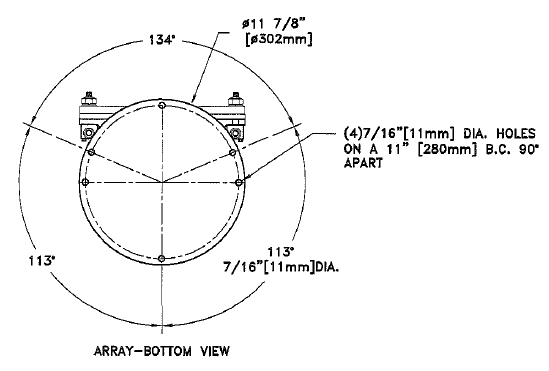

Dimensional Drawings
Fog Signal FAQ
What range do the LIEX 710 fog signals cover?
The LIEX 710/051 is U.S. Coast Guard approved for a 1/2 mile range with one LIEX 710 emitter and 9.5 W input to the emitter. The LIEX 710/22 is U.S. Coast Guard approved for a 2 mile range with two LIEX 710 emitters and 110.3 W input to the emitter.
What frequency do these marine fog horns sound at?
Both models resonate at approximately 670 Hz (listed as 670 Hz / 660 Hz) with omnidirectional audio output.
What power supply do they need?
10.5-30 VDC, or 120 or 230 VAC. Other supply voltages are available on request.
Are they approved for hazardous locations?
Both are FM Approved: NI/I/2/BCD/T4 and NI/I/2/IIB+H2/T4, -25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 & 2 versions are also available.
